| Technologie |
PHYSIS® PHYSICAL MODELING |
| Keyboard |

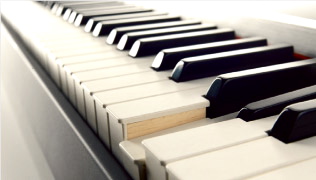

PGK Physis Grand Keyboard – 88 graded-hammer wooden keys with “Ivory Feel” key tops. – 3 contacts – Velocity curves: 5 preset + 4 user |
| Sound Engines |
Acoustic Piano Model (APM), Electric Piano Model (EPM), Wurly Piano Model (WPM), Clavi Piano Model (CPM), Acoustic Mallet Model (AMM), High Definition Sound Engine (HDSE) |
| Sound Modeling (macro parameters) |
APM: size, tuning, resonance, hammer, string type, hit point, EPM: hammer velocity, damper felt, tone bar dimension, tine position, WPM: hammer velocity, damper felt, reed size, reed position, CPM: tangent velocity, key-off noise, pickup position, clave aging, AMM: bar material, mallet material, rotor speed, hit point, clavi panel |
| Sounds |
6 sound families (Piano, E. Piano, Mallet, Keyboard, Ensemble, Bass/Guit), 192 preset, 192 user; Voice mode: Single, Dual, Split. |
| Polyphony |
(Physis physical models APM,EPM,WPM,CPM,AMM: full polyphony: HDSE: up to 128 notes) |
| Data Memory |
6 memory families, 192 presets, 192 user |
| Sound Chain |
SOUND + COMPRESSOR + AMPLIFIER + EQUALIZER + EFFECTS |
| Master Section |
EFFECT, REVERB, EQUALIZER, MIXER |
| Song Mode |
usb device, demo, library, playlist |
| Readable Files Format |
midi, audio (.wav, .mp3, .aiff, .aac, .m4a, .ape, .ogg) |
| String Resonance |
Oui |
| Damper Resonance |
Oui |
| Recorder |
midi |
| Memories |
porta usb |
| Internal Memory |
2GB |
| Metronome |
si |
| Ecran de contrôle |
Multi-Touch Panel, Custom Configurable Interface, High Resolution Display (480×272 px, color, 4,3”) |
| Additional Controls |
Programmable Temperament, internal clock, file manager, transposer, view, standby |
| Connections |
Midi In/Out/Thru, Digital S/PDIF out, USB to Host and to Device, Headphone, Audio Output L/R: Unbalanced (TSR), Audio Input L/R: Unbalanced (TSR), Pedals: Sustain (gradual), Sostenuto, Soft, Controller 1 and 2: for switch or continuous controllers, programmable function |
| Internal Amplification |

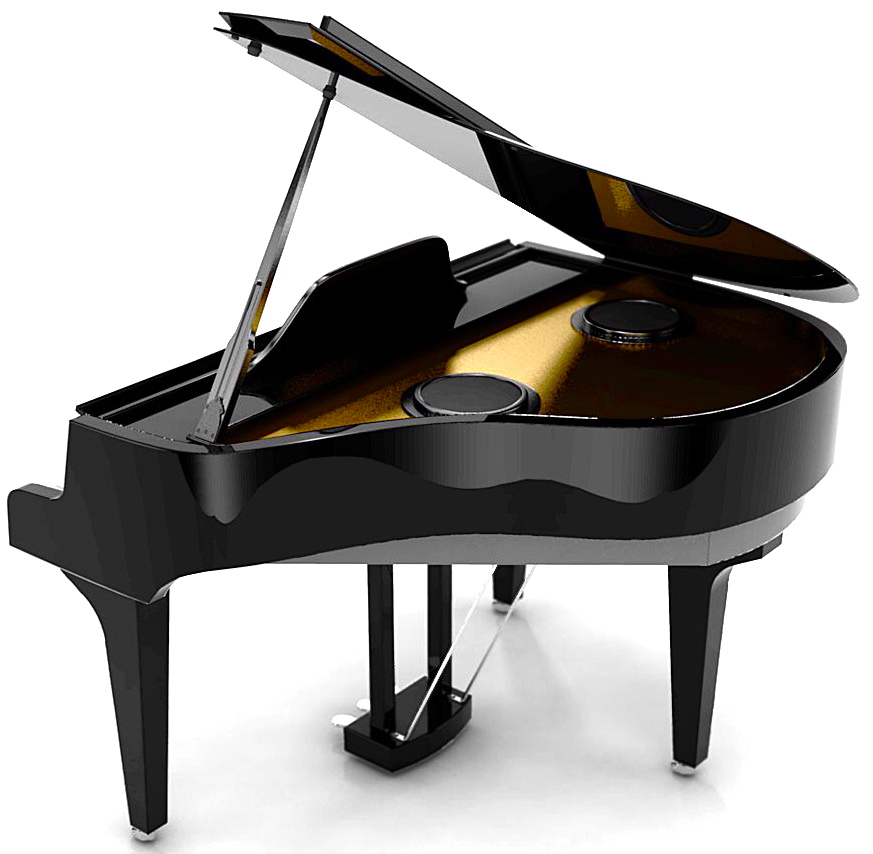

4×40 Watt / 2×6 » Woofers – 2×3 » Mids – 2×1 Tweeters |
| Dimension (WxHxD) |
1440 x 1016 x 1420 mm – 56,69′ x 40 » x 55.9″ (with closed lid) – 1440 x 1717 x 1420 mm – 56,69 » x 67,59″ x 55.9 » (with open lid) |
| Couleurs / Finitions |
Noir brillant |
| Poids |
Kg131 / Lbs 288 |
